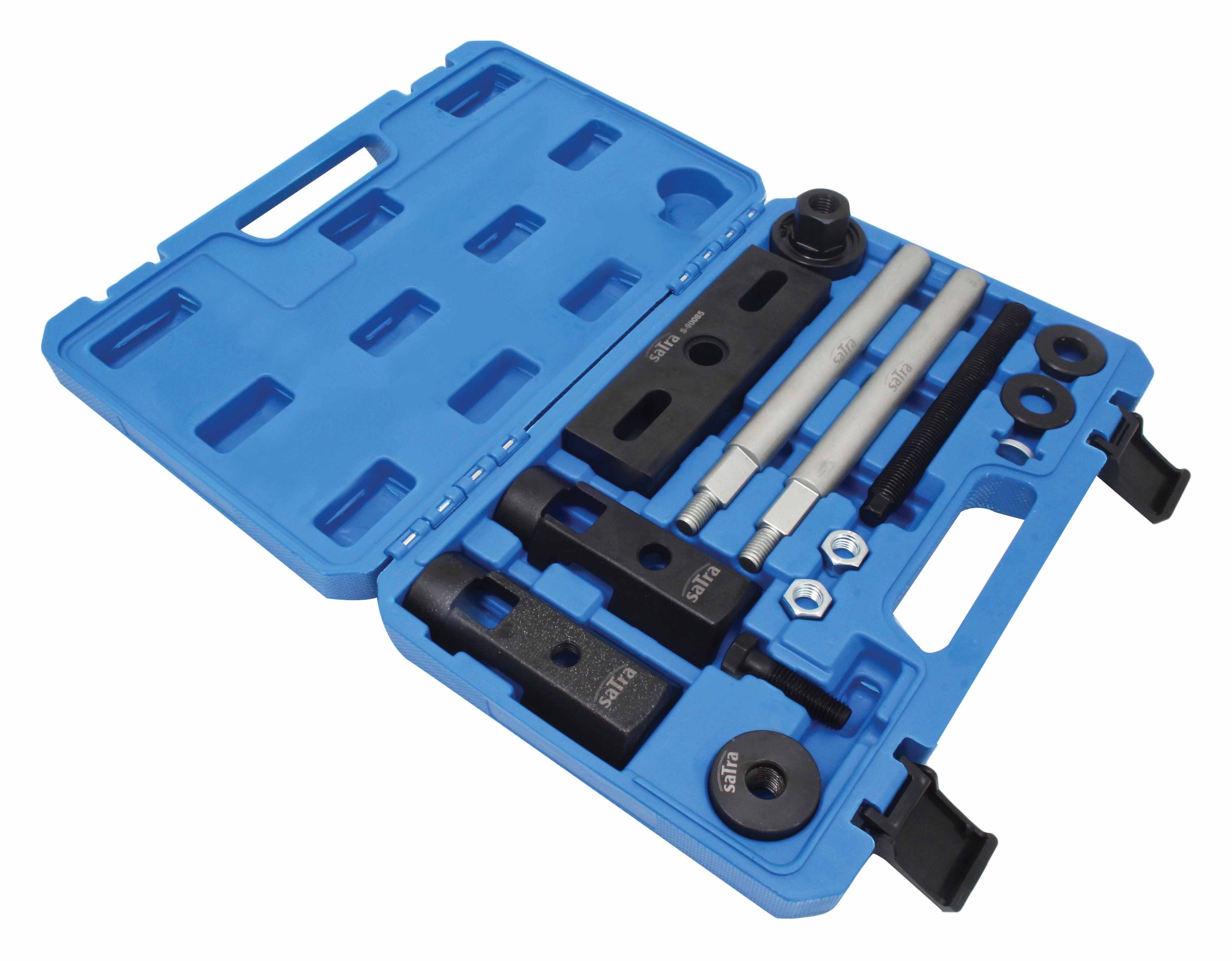

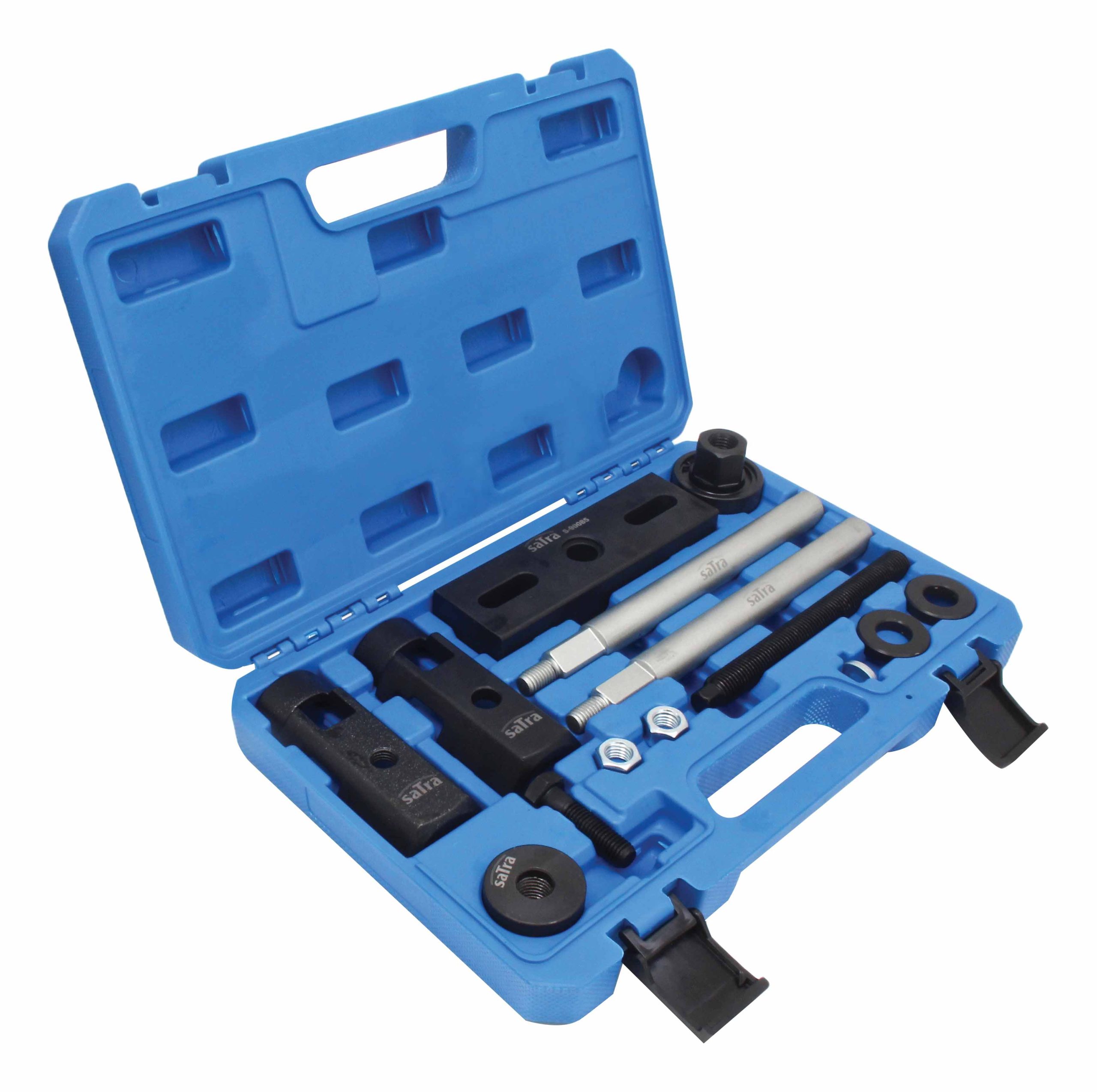

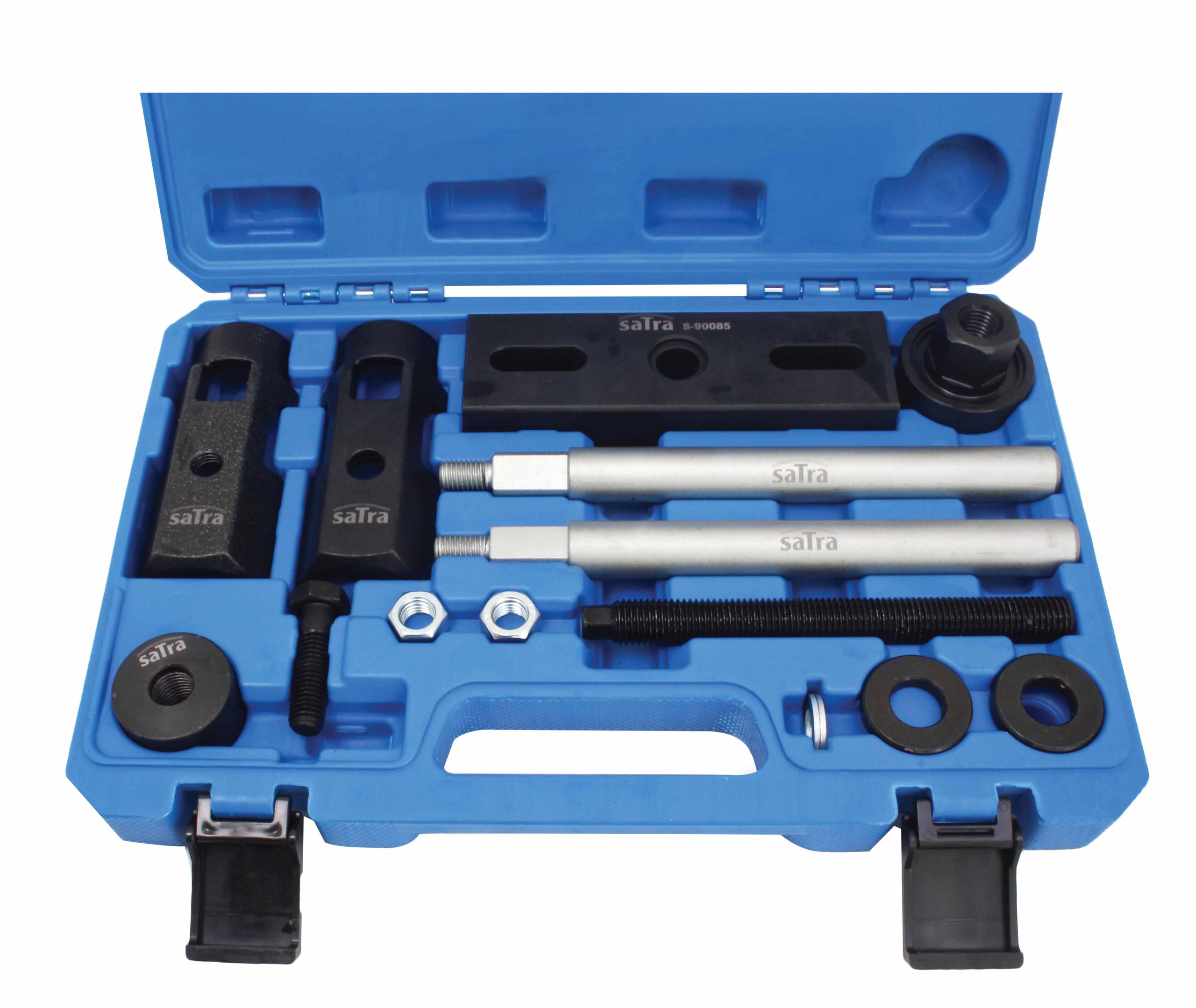

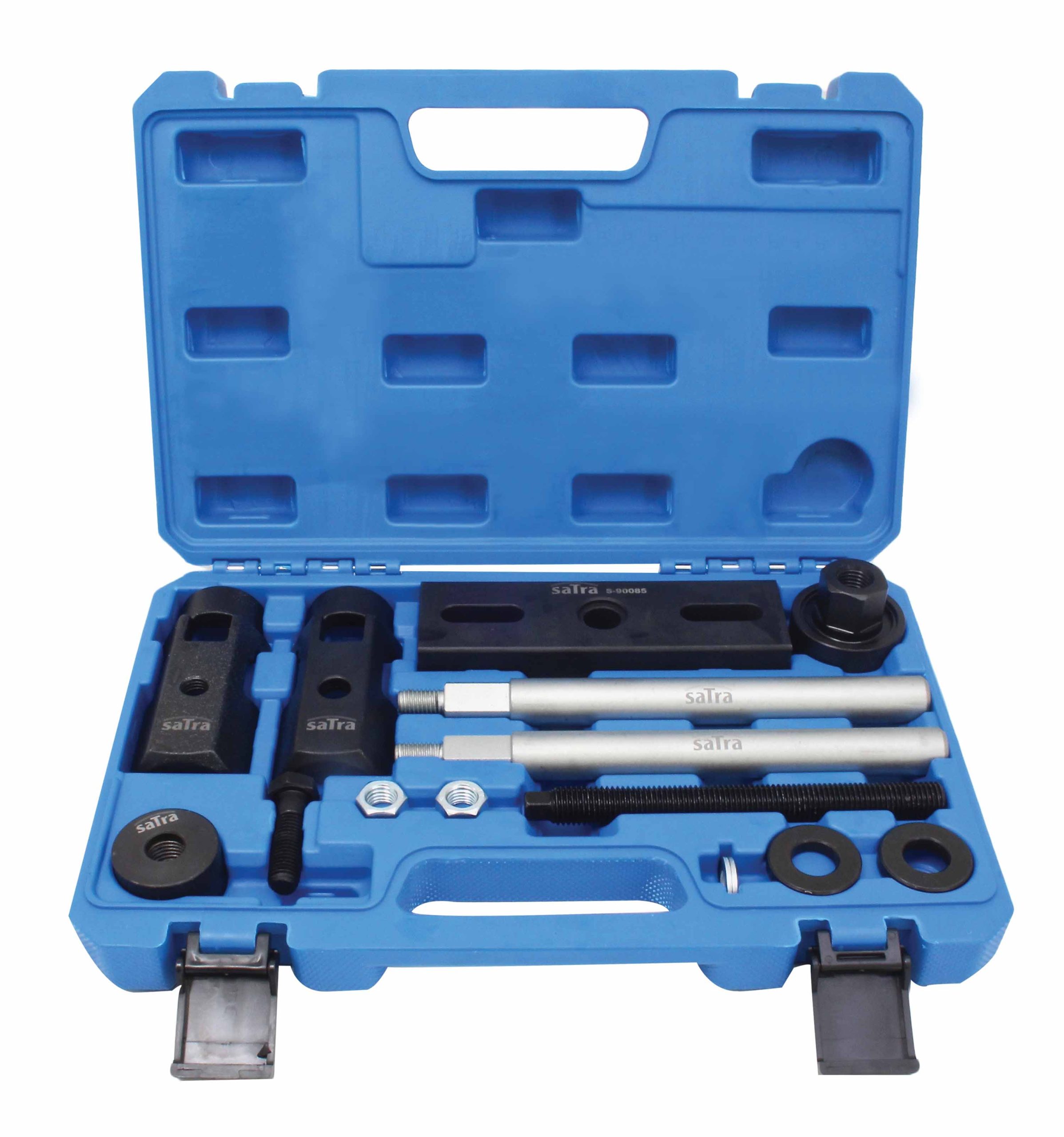

Specialist SATRA tool set for easy and safe dismantling of entire diesel injectors in FORD EcoBlue 2.0 engines.

This set allows dismantling of injectors without damaging them, which ensures their subsequent assembly and reuse.

The clamping screws should be lubricated with molybdenum disulfide grease before use.

The maximum tightening torque of the main screw must not exceed 200 Nm.

Application:

Ford Edge (18- ), Focus (18-), Galaxy (18-), S-Max (18-); Kuga (19-), Mondeo(19-), Ranger (19-); Tourneo (16-), Transit (16-).

Engine codes:

2,0 EcoBlue TDCi
BC2X, BCCA, BCCB, BCCC, BCCD, BCDA, BCFA, BCFB, BCRA, BJFA, BJFB, BJFC, BJFD, BJRA, BJRB, BKFA, BKFB, BKFC, BKFD, BKRA, BKRB, BLFA, BLFB, BLFC, BLFD, BLHA, BLRA, BLRB, YL2X, YLCA, YLCB, YLCC, YLDA, YLDC, YLF6, YLFA, YLFB, YLFS, YLR6, YLRA, YMCA, YMCB, YMCC, YMDA, YMF6, YMFA, YMFB, YMFS, YMHA, YMR6, YMRA, YN2X, YNCA, YNF6, YNFA, YNFB, YNFS, YNR6, YNRA
