Glow plug thread repair tool set for VW/ Volkswagen and Audi cars – VAG Group. For quick and professional drilling out damaged or torn-off glow plugs without removing the cylinder head. Allows re-cutting or repairing glow plug thread and cleaning of the electrode bore. Exact depth and drilling angle are reached using guide sleeves.

FITS:

– M10 x 1 glow plug thread on e.g. WV Passat, Audi V6 TDI with 2.5l / 2.7l / 3.0l engines.

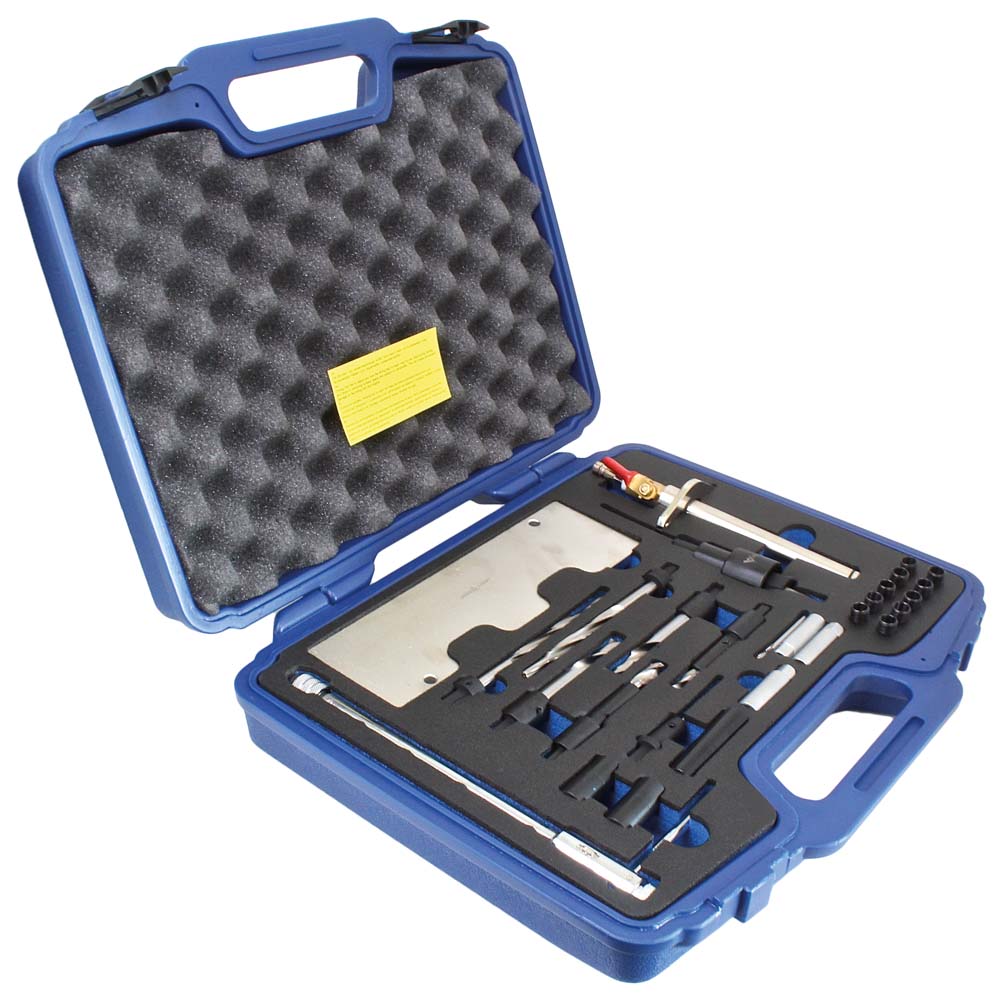

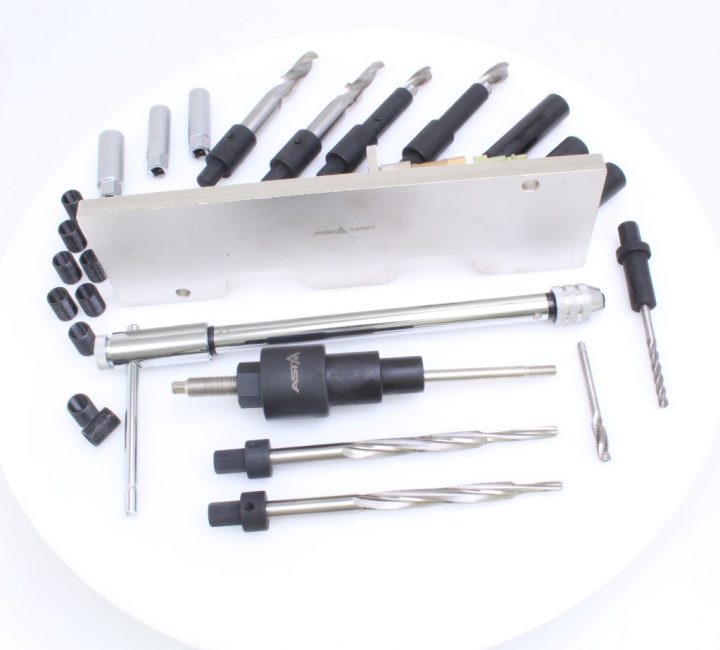

Set includes:

• cover plate for intake ports

• compressed air adapter for injector bore

• 9.1 mm drill for M10 x 1

• 11.1 mm drill for M12 x 1

• tap with guide sleeve for M10 x 1 threads

• tap with guide sleeve for M12 x 1 threads

• 10 threaded inserts for M10 x 1 with external thread M12 x 1

• M6 x 1.25 taps

• extraction tool

• 2 reamers 4.8 mm, long and short type

• reamer 5.8 mm long type

• 3 guide sleeves

• Ø 17,5 mm OD – 38 mm length

• inside Ø 9 mm and 13 mm – 63 mm length 13 mm inside Ø

• 2.4 – 5.5 mm tapping holder 240 mm long with 1/4” drive

• 3 extractor electrodes for 2.5 – 3.5 – 4 mm

MODELS:

•VW Passat, Audi 2.5l / 2.7l / 3.0l V6 TDI

ENGINE TYPES:
