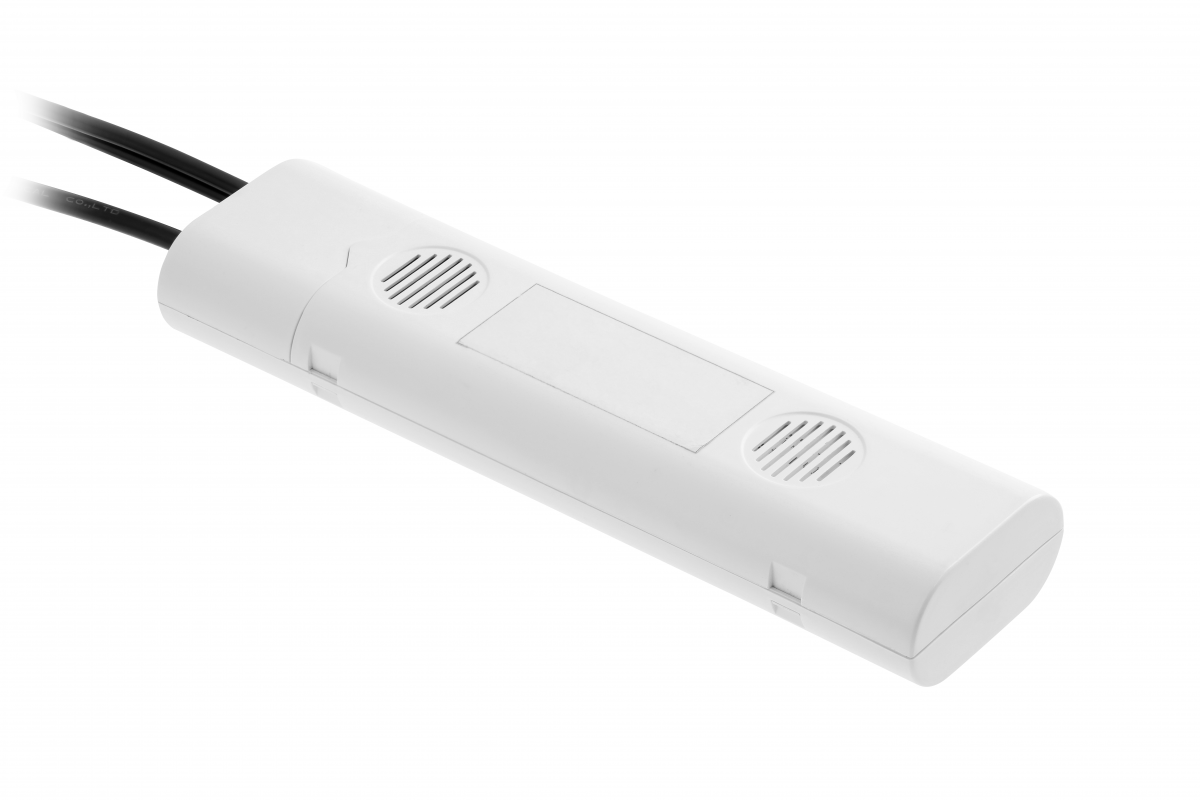

Emergency module for LED panels, AC220-240V, 50-60Hz, 24-48V, 3 hours, 4.8 V, 3000mAh, NI-CD battery, TEST button

, ,

Emergency module for LED panels, AC220-240V, 50-60Hz, 24-48V, 3 hours, 4.8 V, 3000mAh, NI-CD battery, TEST button

40.41 sis.KM

Emergency module for LED panels

The module is ideal for places that require continuous lighting, such as hospitals, warehouses, offices, and other commercial and residential spaces where safety and continuity of light are a priority.

Operating modes:

  1. ‘Bright’ Mode: Provides continuous illumination that functions both at normal power and when it is lost.
  2. ‘Dark’ Mode: The panel only lights up in the event of a power outage, which is ideal for occasional use.
  3. Switchable Mode: The lighting of the panel can be controlled by an external switch, allowing for flexible lighting management.

Installation and Operation:

  • LED indicator: Indicates the correct charging process for easy monitoring of the module’s status.
  • First Time Charge: A 48-hour initial charge is required to ensure maximum battery efficiency and longevity.
  • Recharging and Testing: After the first charge, it is recommended to perform a full discharge test and then recharge for a minimum of 24 hours, which is crucial to maintain the health of the battery.
Kaal 0.621 kg
Mõõtmed 27 × 9.5 × 4 cm
